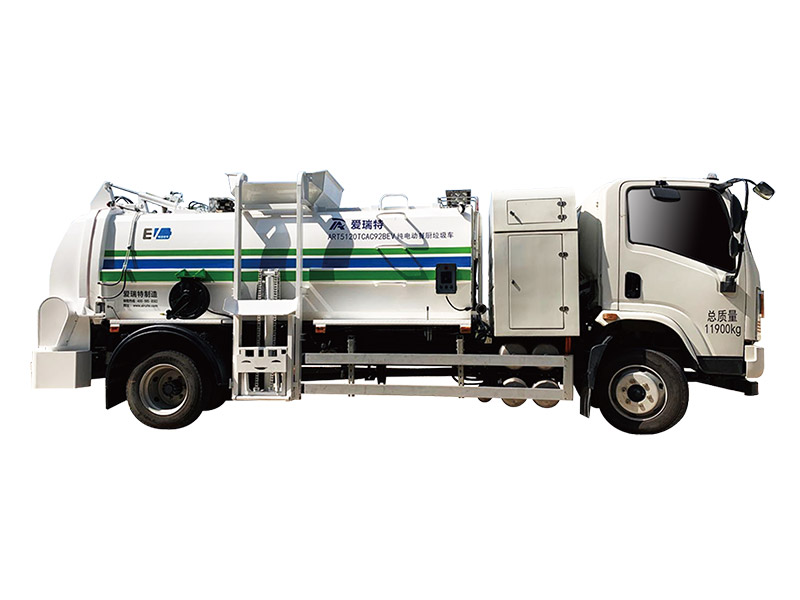

ART5120TCAC92/98BEV Pure electric kitchen garbage truck is mainly used for the collection and transportation of kitchen and kitchen waste in catering industry, unit canteen, living area and other places. Pure electric operation has low cost and zero emission.

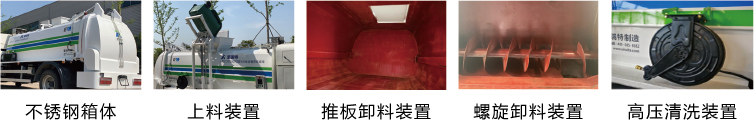

◆ Stainless steel box: the box is made of 304 stainless steel, the feeding port is sealed by the sealing cover, and the hydraulic system controls the opening and closing;
◆ Receiving system: side chain type bucket lifting and tipping mechanism for feeding;
◆ Compression system: push and squeeze after pushing plate;
◆ Discharge system: the solid-liquid separation device is built in the box, which can push the plate to extrude and screw to discharge at fixed points;
◆ Hydraulic system: the rated pressure of the hydraulic system is 16MPa, the discharge door is pulled up by two rods, equipped with two-way balance valve, and the key components of electrical and hydraulic systems are of famous brands;
◆ Cleaning system: equipped with hydraulic cleaning device, it can clean the whole vehicle.
| Parameters | ART5120TCAC92BEV Pure electric kitchen garbage truck | ART5120TCAC98BEV Pure electric kitchen garbage truck |
| Chassis model / brand | EQ1120TTEVJ/east wind | SH1127KEVCWZ/Leap forward |
| Total mass | 11900kg | 12495kg |
| curb weight | 7650kg | 7800kg |
| wheelbase | 4700mm | 4720mm |
| Battery brand | Ningde times (LiFePO4) | Ningde times (LiFePO4) |
| Battery capacity | 218.55kWh | 218.55kWh |
| Maximum speed | 90km/h | 90km/h |
| Maximum climbing gradient | 30% | 30% |
| Minimum turning radius | 7.65m | 9.5m |
| Volume of garbage can | 6m3 | 6m3 |
| Volume of sewage tank | 0.6m3 | 0.6m3 |
| Volume of clean water tank | 0.2m3 | 0.2m3 |
| Feeding cycle time | ≤22s | ≤22s |
| Cycle time of discharging operation | ≤240s(Seal discharge)，≤45s（Push discharge） | ≤240s(Seal discharge)，≤45s（Push discharge） |
| Overall dimension (L × w × h) | 7520×2240×2780mm | 7500×2340×2840mm |
